Structure schematic diagram of wireless router
Structure schematic diagram of wireless router
Icon1
Icon2
Schematic diagram of shell heat conduction

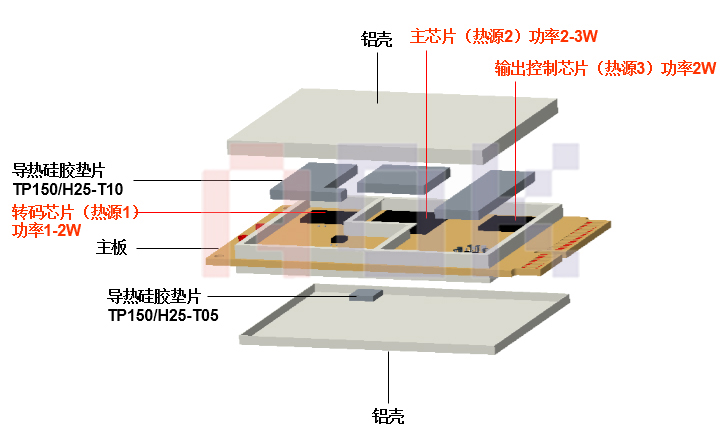

Portable WLAN Device Internal Structure Diagram
Modem Internal Structure Diagram
Temperature rise diagram
Router Temperature Rise Control：
Portable WLAN
产品应用场景
PRODUCT APPLICATION SCENARIOS
Selection of Main Heating Chip Power and Thermal Conductive Interface Material-Thermal Conductive Silicone Gasket
| Heat source power | Materials used | Usage mode | special requirements |
| 1-2W/3-5W |
导热硅胶垫片 导热系数1.2-2.5w/m.k 厚度:0.25-1.0mm 击穿电压：6kv |
填充CPU、ADSL、无线模组与铝散热器之间的 空隙，将芯片热量传递到散热器，起到导热，减 震的作用。 | 因路由器/便携式WLAN涉及到有无线发射天线等 高频发射源，所以对垫片的要求需做到不影响电磁波。 |
Selection of Main Heating Chip Power and Thermal Conductive Interface Material-Thermal Conductive Silicone Gasket
| 热源功率 | 使用材料 | 使用方式 | 特殊要求 |
| 2-4W |
导热硅胶垫片 导热系数1.5-2.5w/m.k 厚度:0.5-1.0mm 击穿电压：6kv |
Modem模组内部解码芯片、主芯片和输出控制IC与铝 散热器之间的热传导、填充、减震。 | 因路由器/便携式WLAN涉及到有无线发射天线等 高频发射源，所以对垫片的要求需做到不影响电磁波。 |
Other Router Architecture
Other Router Architecture
Schematic diagram of switch structure
Icon1
Icon2
| 热源功率 | 使用材料 | 使用方式 |
| 1-2W/3-5W |
导热硅胶垫片 导热系数1.0-1.5w/m.k 厚度:0.25-1.0mm 击穿电压：6kv |
填充CPU、与铝散热器之间的空隙，将芯片热量传递到散热器，起到导热减震的作用。 |
网通类未来的发展趋势
THE FUTURE TREND OF NETCOM
Intelligent routers are based on open systems and support application installation, such as network acceleration, wall-turning, advertising filtering, NFC, etc. Some intelligent routers are also equipped with large capacity hard disks or support external SD cards, which can be used as storage devices. In short, intelligent router has become a small computer. With the increase of product functions, the heat dissipation of equipment will become a very severe test for engineers (more heating components, more power consumption, compact structure) and the requirements for thermal conductive materials will become more and more diverse.
With the intelligent processing of electrical and electronic products, many electronic devices need to be operated and controlled through the network, so the working frequency and intensity of Netcom products are increased. The increase of network speed also brings power increase to Netcom products, and still brings higher demand for heat dissipation.
